Product Characteristics:

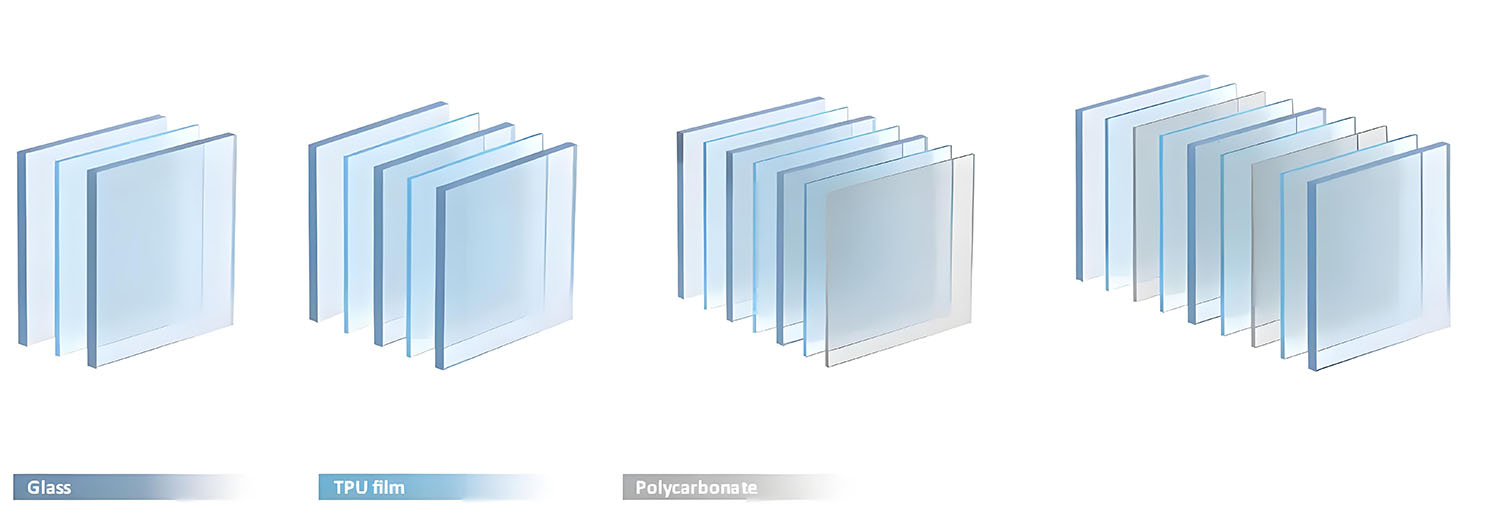

TPU (Thermoplastic Polyurethane) glass lamination film refers to a type of film made from Aliphatic TPU that is specifically designed for laminating glass. This film is used in various applications where enhancing the properties of glass is required, such as improving impact resistance, durability, and sometimes adding additional functionalities like UV protection or anti-fog properties.
Product Name:
1.TPU glass lamination film
2.TPU Interlayer Film
3.TPU film for glass lamination
4.Aliphatic TPU Film for Glass lamination
5.Aliphatic TPU Interlayer Film
Features:
1.High Hydrolysis resistance
2.Excellent Bonding Strength with Glass,Acrylic and PC
3.Good UV Stability
4.Aliphatic TPU Film
5.Applications: Construction (for safety glass), and Aviation, Transportation, Security and Building Curtain Glass and Vehicle armoring
Specifications: XG3F75
1.Thickness: 0.38mm 0.63mm 0.76mm 1.25mm
2.Width: 800mm-1800mm Regular 1524mm
3.Color: Natural
4.Package:
Thickness | Package | Remarks |
0.38mm | Inch paper tube + CPE stretch film+ vacuum packed in foil bags+wooden box | |
0.63mm | 100Meter/Roll, 1Roll/Wooden Box | |
0.76mm | 50Meter/Roll, 1Roll/Wooden Box | |
1.25mm | 30Meter/Roll, 1Roll/Wooden Box |
TEST ITEM | TEST METHOD | UNIT | TEST VALUE |
Hardness | ASTM D2240 | Shore A | 75 |
Special Gravity | ASTM D792 | g/cm³ | 1.06 |
Color | Visual Inspection | / | Natural |
Tensile Strength | ASTM D412/Die C | CD:20.65 MD:25.63 | |
100% MOD | ASTM D412/Die C | MPa | CD:2.31 MD:2.63 |
300% MOD | MPa | CD:5.87 MD:7.36 | |
Elongation at Break | ASTM D412/Die C | % | |
Tear Strength | ASTM D624 | CD:45.46 MD:38.9 | |
Peeling Strength | ASTM D3330M | KN/m | 16.2 |
Glass transition temperature | ASTM D3418 | ℃ | -60 |
Yellowing Index | ASTM E313 | / | 0.2 |
Visible Light transmittance | ASTM D1003 | % | 88.5 |
Haze | ASTM D1003 | % | 0.27 |
Melting Point | DSC | ℃ | 91 |
